Ultrasonic Machines
Our ultrasonic machines are engineered for durability and efficiency, producing high-quality results for various applications. From small-scale to high-volume production, we have a solution for your business.
Our Ultrasonic Machine Collection
Discover our wide selection of ultrasonic machines, including manual, semi-automatic, and fully automatic models. Each machine is designed to deliver reliable performance and superior results for your ultrasonic manufacturing needs.
Model #1
Ultrasonic cleaner, M-2
The M-2 is a compact ultrasonic cleaner, featuring a 2-liter stainless steel tank with digital controls and a timer function up to 15 minutes. It operates at dual frequencies (33kHz and 3kHz) with 50 watts of ultrasonic power and includes a 100-watt heater, making it suitable for thorough cleaning of delicate items. This professional-grade device is designed for use in pharmaceutical industries, hospitals, R&D laboratories, and jewelry applications where precise ultrasonic cleaning is required.
| Model | M-2 Us |
|---|---|
| Tank Size | 243 × 140 × 65 mm (L × W × H) |
| Outer Size | 265 × 162 × 240 mm (L × W × H) |
| Tank Material | SS 304 |
| Enclosure Material | SS 304 |
| Tank Capacity | 2 Liters |
| Ultrasonic Power | 50 Watts |
| Heater Power | 100 Watts |
| Ultrasonic Frequency | 33 kHz ± 3 Hz |
| Timer | 0–15 Minutes (digital countdown) |
| Power Input | 230 VAC |
| Transducers | Imported PZT bonded at tank bottom via weld-bond technique |
| Ultrasonic Generator | Advanced MOSFET/IGBT-based SMPS |
| Degassing Mode | On/Off |
| Accessories | ['Lid', 'Basket', 'Power Cord'] |
Model #2

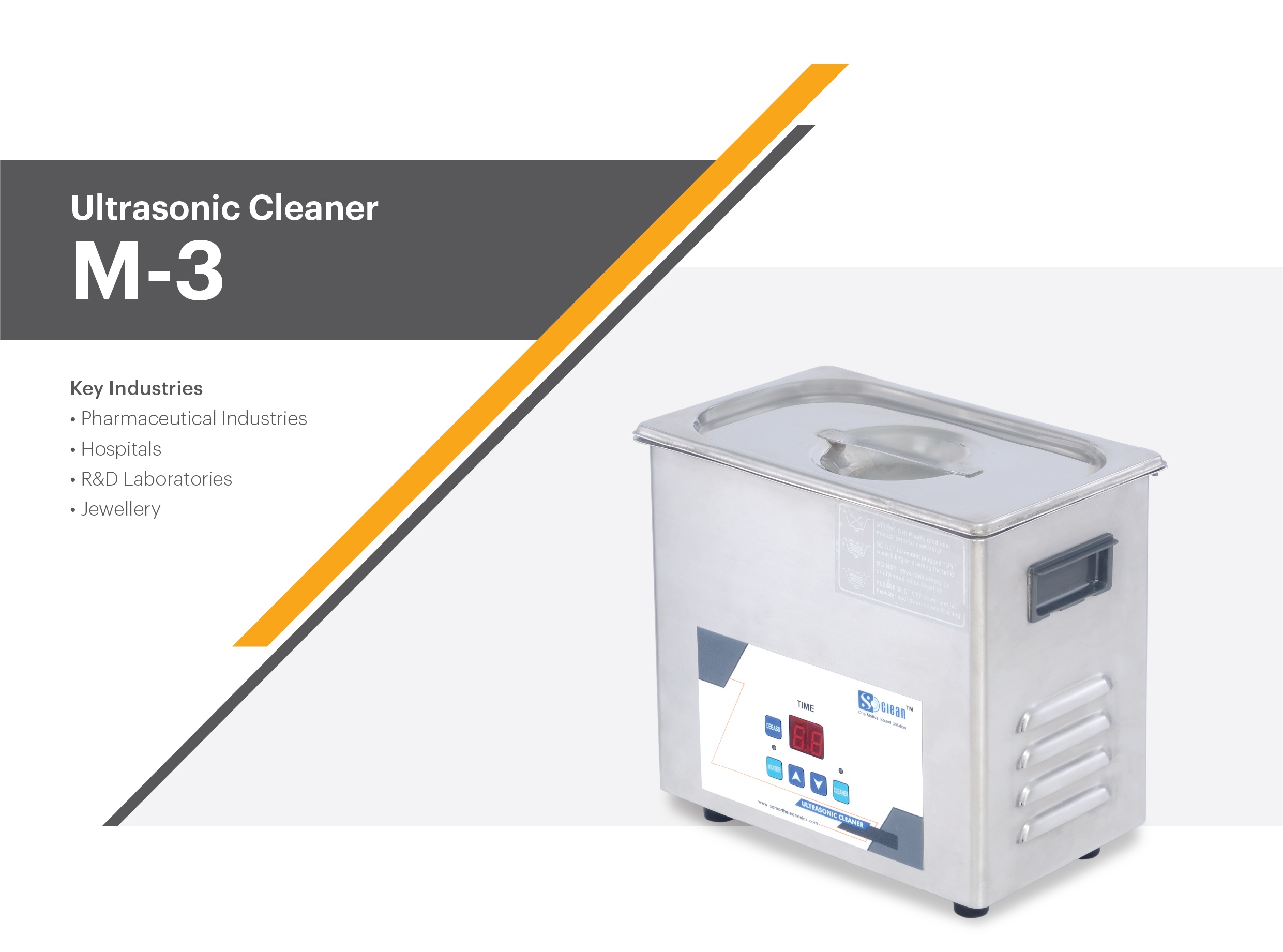

Ultrasonic cleaner, M-3
The M-3 is a 3-liter capacity ultrasonic cleaner, featuring a larger stainless steel tank and more powerful 100-watt ultrasonic system compared to the M-2 model. It operates at 33kHz frequency with digital timer controls up to 15 minutes and includes a 100-watt heater for enhanced cleaning performance. This professional-grade unit is designed for pharmaceutical industries, hospitals, R&D laboratories, and jewelry applications where higher capacity and power are needed for effective ultrasonic cleaning.
| model | M-3 US |
|---|---|
| tank_size | 240 × 140 × 100 mm (L × W × H) |
| outer_size | 265 × 162 × 240 mm (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 3 Liters |
| ultrasonic_power | 100 Watts |
| heater_power | 100 Watts |
| ultrasonic_frequency | 33khz ± 3khz |
| timer | 0 to 15 Minutes (Digital Countdown Base) |
| power_input | 230 Vac |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance latest MOSFET / IGBT based smps |
| degass | On / Off Mode |
| accessories | ['Lid', 'Basket', 'Powercord'] |
Model #3

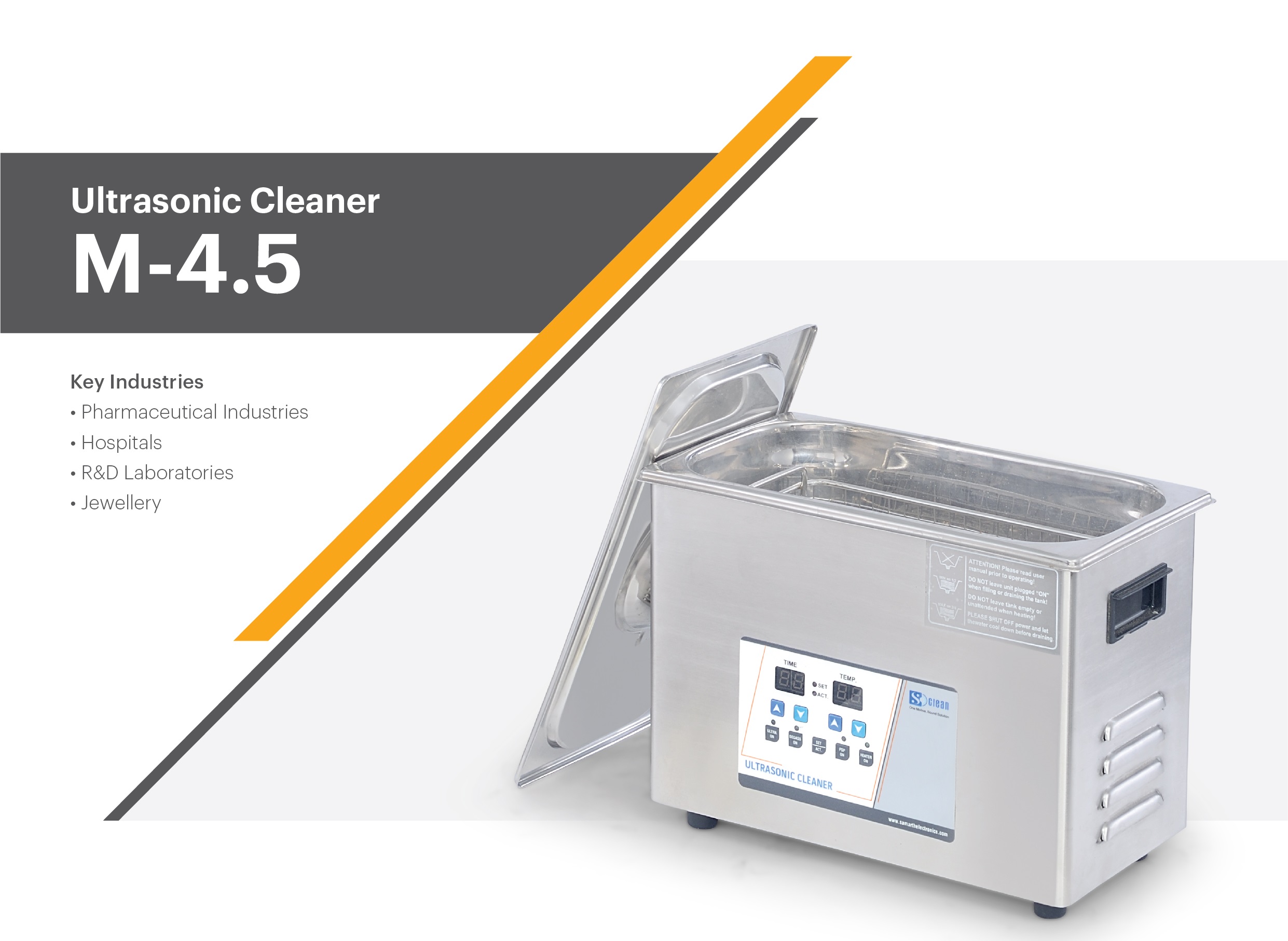

Ultrasonic cleaner, M-4.5
The M-4.5 is a 4.5-liter capacity ultrasonic cleaner, featuring advanced digital controls with an extended timer range up to 99 minutes and precise temperature control settable up to 60°C. This professional-grade unit includes Pulse Swift Power (PSP) technology for uniform distribution of ultrasonic power and operates at 33kHz frequency with 100 watts of both ultrasonic and heating power. Designed for pharmaceutical industries, hospitals, R&D laboratories, and jewelry applications, it offers enhanced cleaning capabilities with its larger tank capacity and sophisticated control system.
| model | M-4.5 Us |
|---|---|
| tank_size | 300 mm × 150 mm × 100 mm (L × W × H) |
| outer_size | 325 mm × 176 mm × 240 mm (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 4.5 Liters |
| ultrasonic_power | 100 Watts |
| heater_power | 100 Watts |
| ultrasonic_frequency | 33khz ± 3khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230 Vac |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance latest MOSFET / IGBT based smps |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| temperature | 60°c settable with digital temp. controller |
| accessories | ['Lid', 'Basket', 'Powercord'] |
Model #4

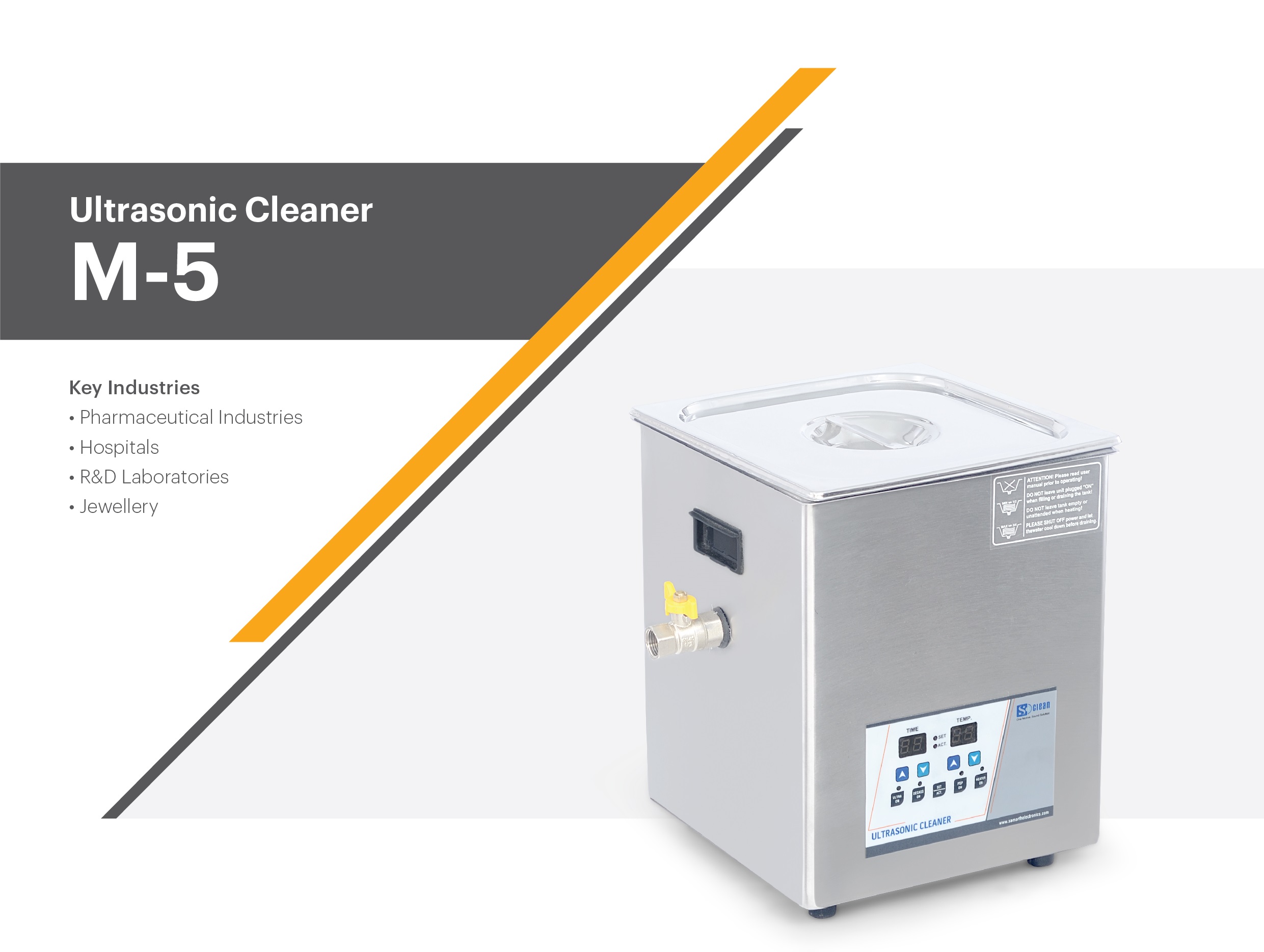

Ultrasonic cleaner, M-5
The M-5 is a professional 5-liter capacity ultrasonic cleaner, featuring a square tank design with advanced digital controls and extended timer functionality up to 99 minutes. This high-performance unit includes enhanced heating capability with 150W heater power, digital temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution. Designed for demanding applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features aqua/solvent-based operation and includes a convenient drain valve for easy maintenance.
| model | M-5 US |
|---|---|
| tank_size | 235 mm × 235 mm × 100 mm (L × W × H) |
| encloser_size | 265 mm × 265 mm × 250 mm (L × W × H) |
| chamber_material | SS 304 |
| tank_encloser | SS 304 |
| tank_capacity | 5 Liters |
| ultrasonic_power | 100 Watts |
| power_input | 230 Vac |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| frequency | 33 Khz ± 3 Khz |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advanced latest MOSFET Based Smps |
| heater_power | 150 W for efficient heating |
| digital_temp_controller | Digital temperature controller with setting max-60°c |
| solvent | Aqua / Solvent Based |
| degass | On / Off Mode |
| pulse_swift_power | For uniform distribution ultrasonic power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #5

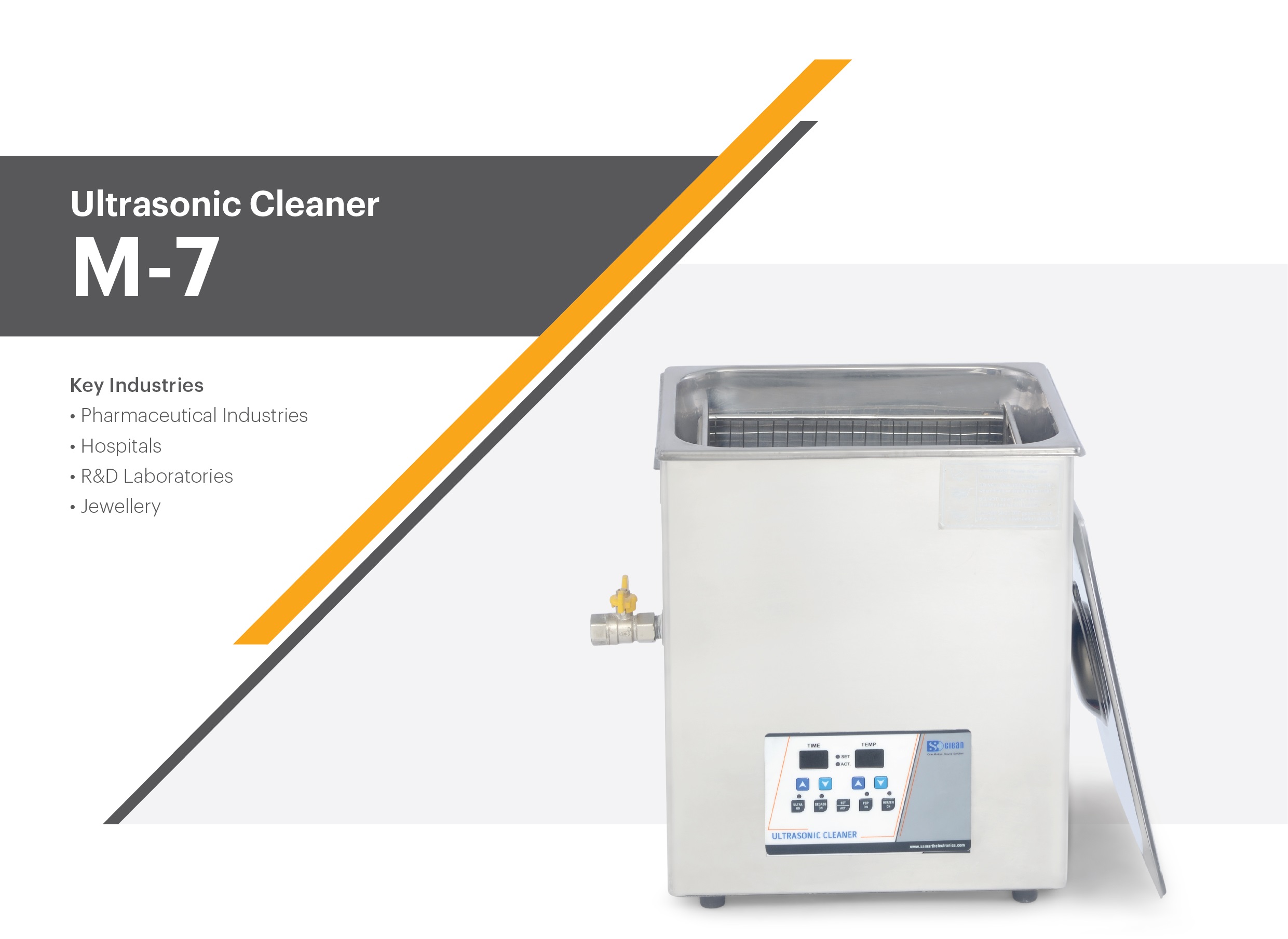

Ultrasonic cleaner, M-7
The M-7 is a 7-liter capacity ultrasonic cleaner, featuring a large rectangular tank design with enhanced 150-watt ultrasonic power and dual frequency operation at 33kHz/40kHz for versatile cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, 150-watt heating power, and digital temperature control up to 60°C, along with Pulse Swift Power (PSP) technology for uniform ultrasonic distribution. Designed for demanding industrial applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features a convenient hinged lid design and drain valve for easy operation and maintenance.
| model | M-7 US |
|---|---|
| tank_size | 300 mm × 240 mm × 100 mm (L × W × H) |
| outer_size | 320 mm × 276 mm × 210 mm (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 7 Liters |
| ultrasonic_power | 150 Watts |
| ultrasonic_frequency | 33khz / 40 Khz ± 3khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230 Vac |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance latest MOSFET / IGBT based smps |
| heater_power | 150 Watts |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| temperature | 60°c settable with digital temp. controller |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #6

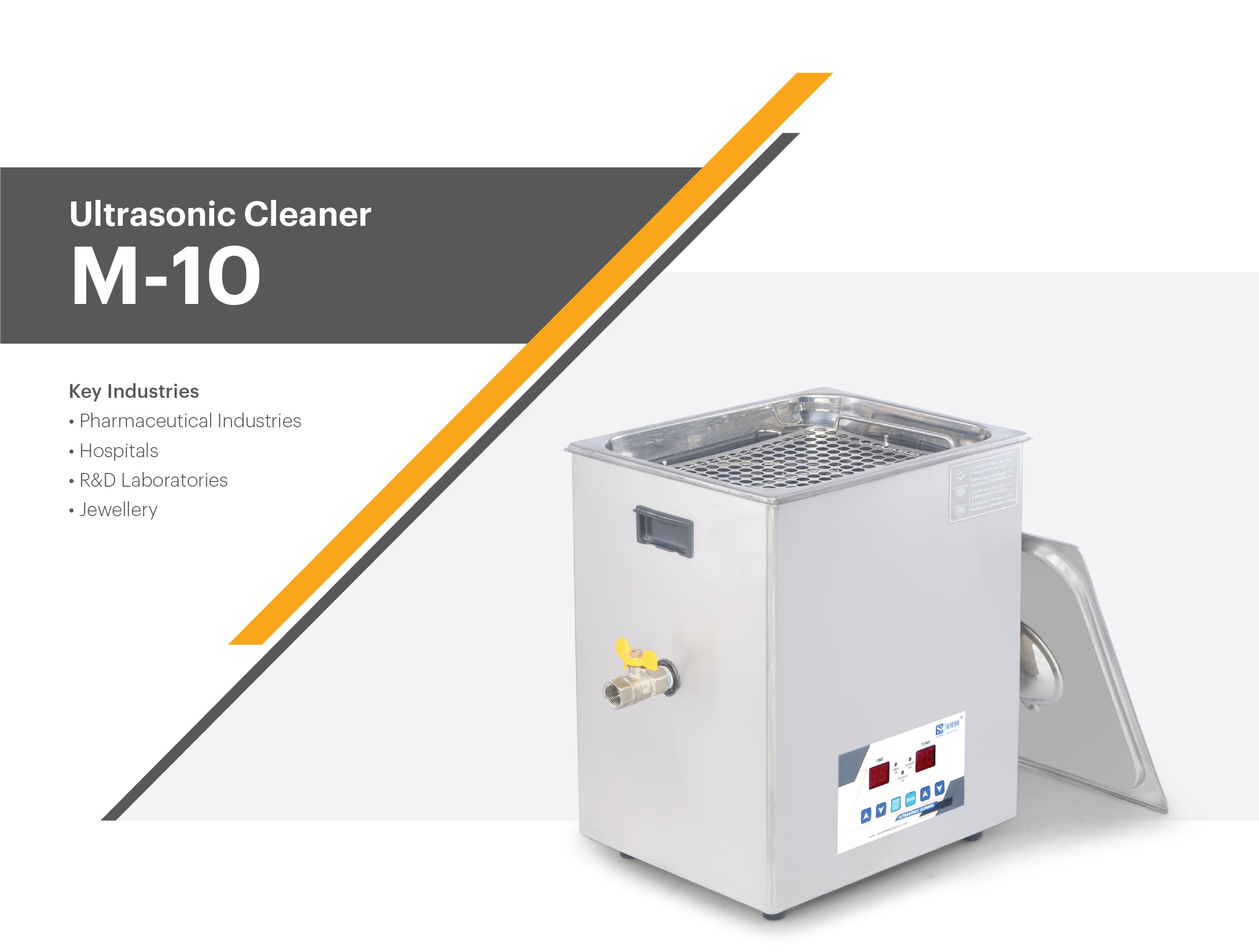

Ultrasonic cleaner, M-10
The M-10 is a high-capacity 10-liter ultrasonic cleaner, featuring powerful 200-watt ultrasonic and heating systems with dual frequency operation at 33kHz/40kHz for superior cleaning performance in demanding applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the large tank. Designed for intensive use in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning operations, it features a robust stainless steel construction with hinged lid design and convenient drain valve for efficient operation and maintenance.
| model | M-10 US |
|---|---|
| tank_size | 300 mm × 240 mm × 150 mm (L × W × H) |
| outer_size | 325 mm × 276 mm × 260 mm (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 10 Liter's |
| ultrasonic_power | 200 Watts |
| heater_power | 200 Watts |
| ultrasonic_frequency | 33khz / 40 Khz ± 3khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230 Vac |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance Latest MOSFET / IGBT based smps |
| degass | On / Off Mode |
| pulse_swift_power | For uniform distribution ultrasonic power |
| temperature | 60°c settable with digital temp. controller |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #7

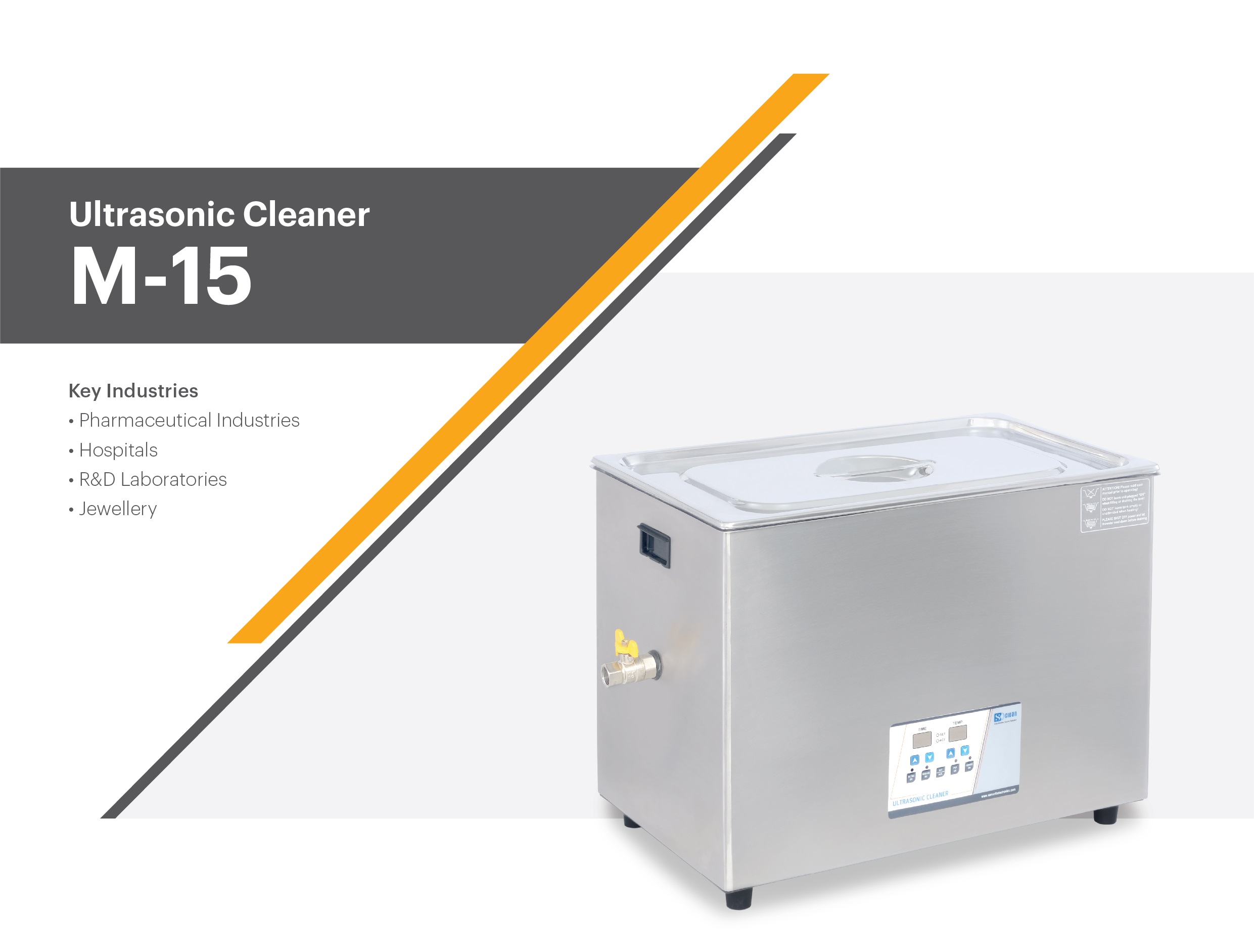

Ultrasonic cleaner, M-15
The M-15 is a large-capacity 15-liter ultrasonic cleaner, featuring powerful 300-watt ultrasonic and 500-watt heating systems with dual frequency operation at 33kHz/40kHz for heavy-duty industrial cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the spacious tank. Designed for high-volume cleaning operations in pharmaceutical industries, hospitals, R&D laboratories, and jewelry applications, it features robust stainless steel construction with a convenient drain valve and comprehensive digital control panel for efficient operation.
| model | M-15 US |
|---|---|
| tank_size | 500 mm × 300 mm × 100 mm (L × W × H) |
| outer_size | 525 mm × 320 mm × 345 mm (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 15 Liters |
| ultrasonic_power | 300 Watts |
| ultrasonic_frequency | 33khz 40 Khz ± 3khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230vac |
| heater_power | 500 Watts |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance latest MOSFET / IGBT based smps |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| temperature | 60°c settable with digital temp. controller# |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #8

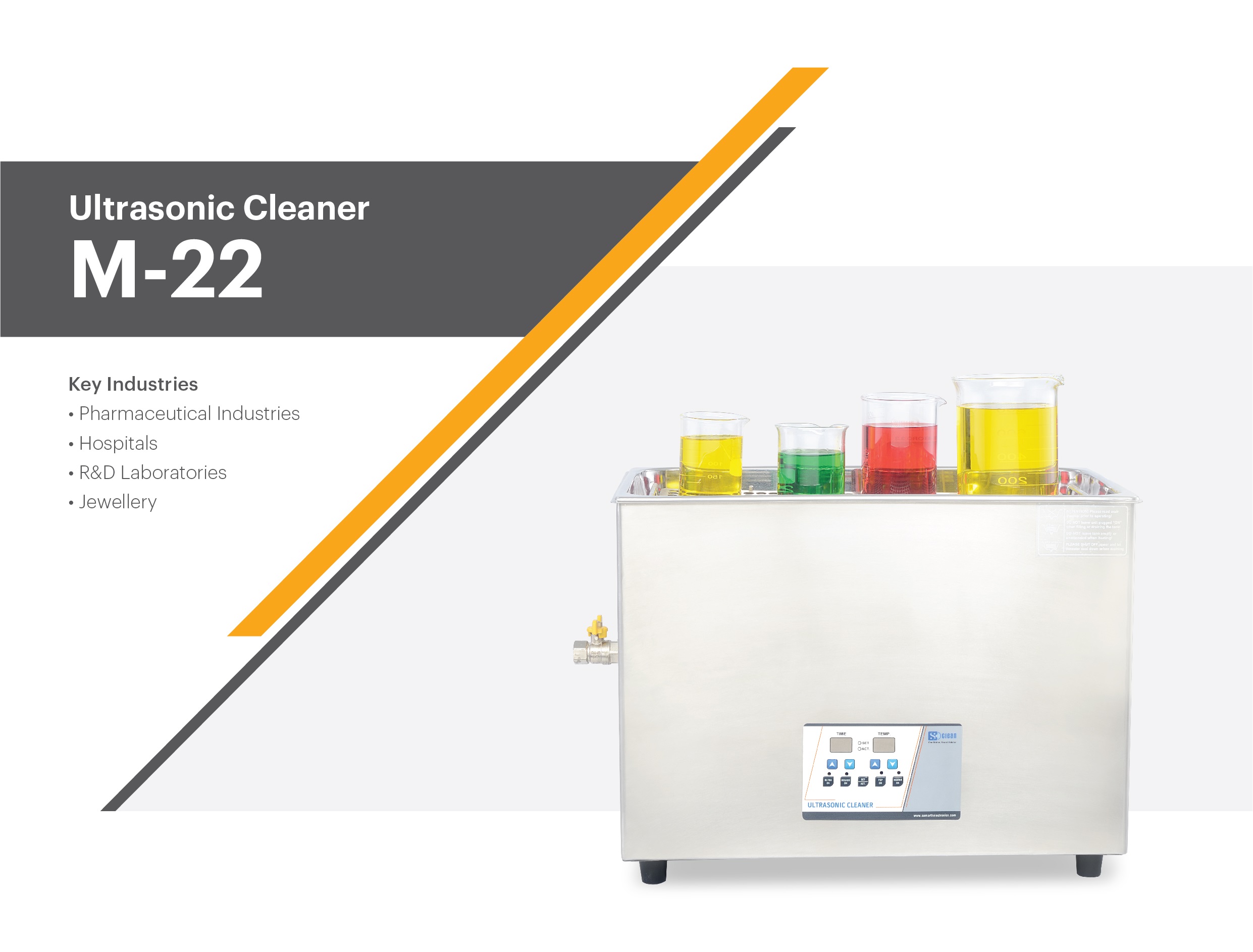

Ultrasonic cleaner, M-22
The M-22 is a high-capacity 22-liter ultrasonic cleaner, featuring powerful 400-watt ultrasonic output and 500-watt heating systems with dual frequency operation at 33kHz/40kHz for heavy-duty industrial and laboratory cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the large tank. Designed for high-volume cleaning operations in pharmaceutical industries, hospitals, R&D laboratories, and jewelry applications, it features robust stainless steel construction with a spacious design that can accommodate multiple beakers and laboratory equipment simultaneously.
| model | M-22 Us |
|---|---|
| tank_size | 500 mm × 300 mm × 150 mm (L × W × H) |
| encloser_size | 530 mm × 320 mm × 400 mm (L × W × H) |
| chamber_material | SS 304 |
| tank_encloser | SS 304 |
| tank_capacity | 22 Ltrs |
| power_output_ultrasonic | 400 Watts |
| power_input | 230 Vac |
| heater_power | 500 Watts |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| frequency | 33 Khz 40 Khz ± 3 Khz |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advanced latest Mosfet based smps |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| temperature | 60°c settable with digital temp. controller |
| accessories | ['SS 304 Lid', 'SS 304 Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #9

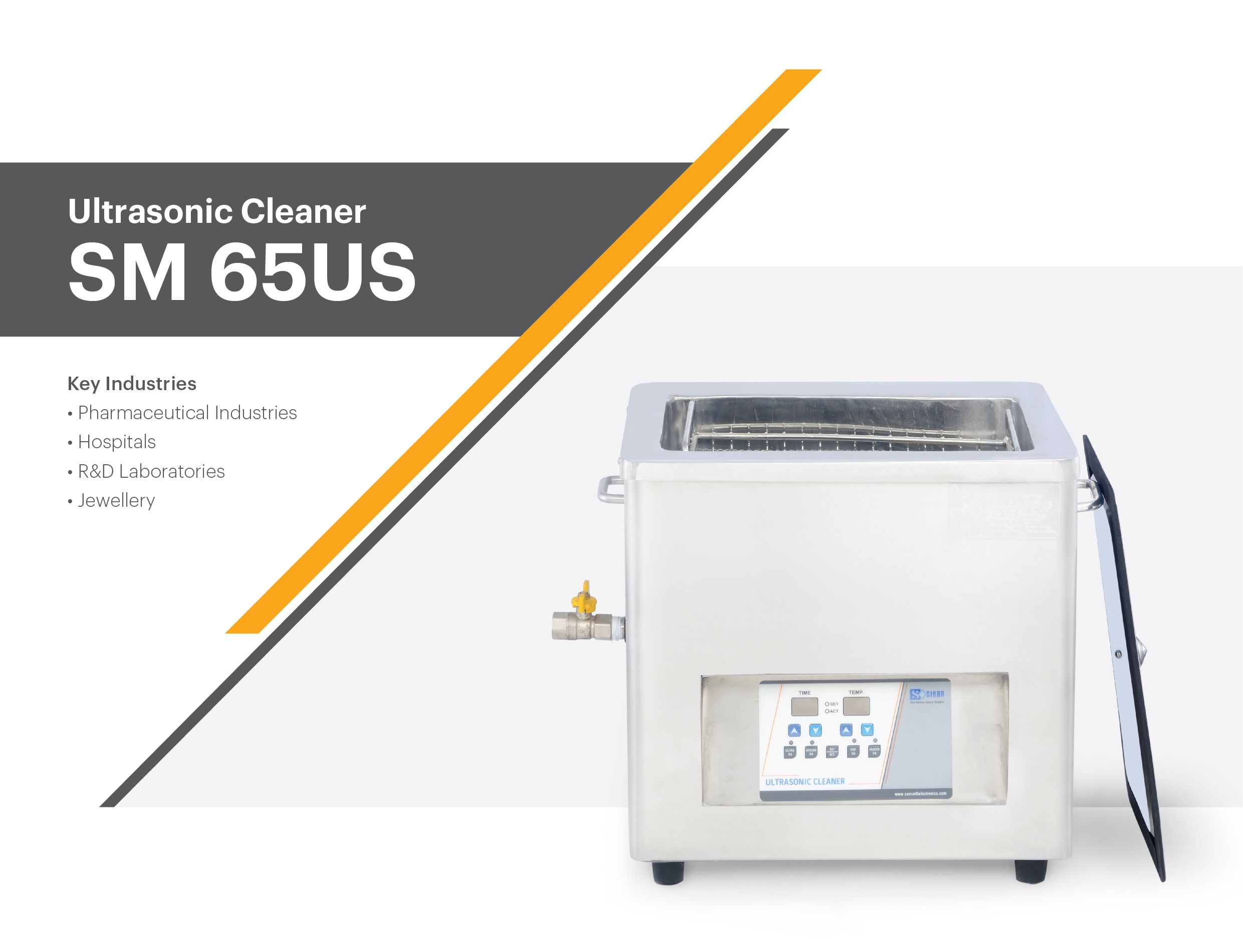

Ultrasonic cleaner, SM 65US
The SM 65US is a 6.5-liter capacity ultrasonic cleaner, featuring 150-watt ultrasonic power and robust 500-watt heating system with dual frequency operation at 33kHz/40kHz for versatile cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the tank. Designed for demanding applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features a compact design with hinged lid and comprehensive digital control panel for efficient operation.
| model | SM 65US |
|---|---|
| tank_size | 12 inches × 6 inches × 6 inches (L × W × H) |
| outer_size | 15 inches × 9.8 inches × 15.4 inches (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 6.5 Liter's |
| ultrasonic_power | 150 Watts |
| heater_power | 500 Watts |
| ultrasonic_frequency | 33 Khz / 40 Khz ± 3 Khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230 vac |
| transducers | Imported make pzt type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance latest mosfet / IGBT based smps |
| temperature | 60°c settable with digital temp. controller |
| degass | On / Off Mode |
| pulse_swift_power | For uniform distribution ultrasonic power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #10

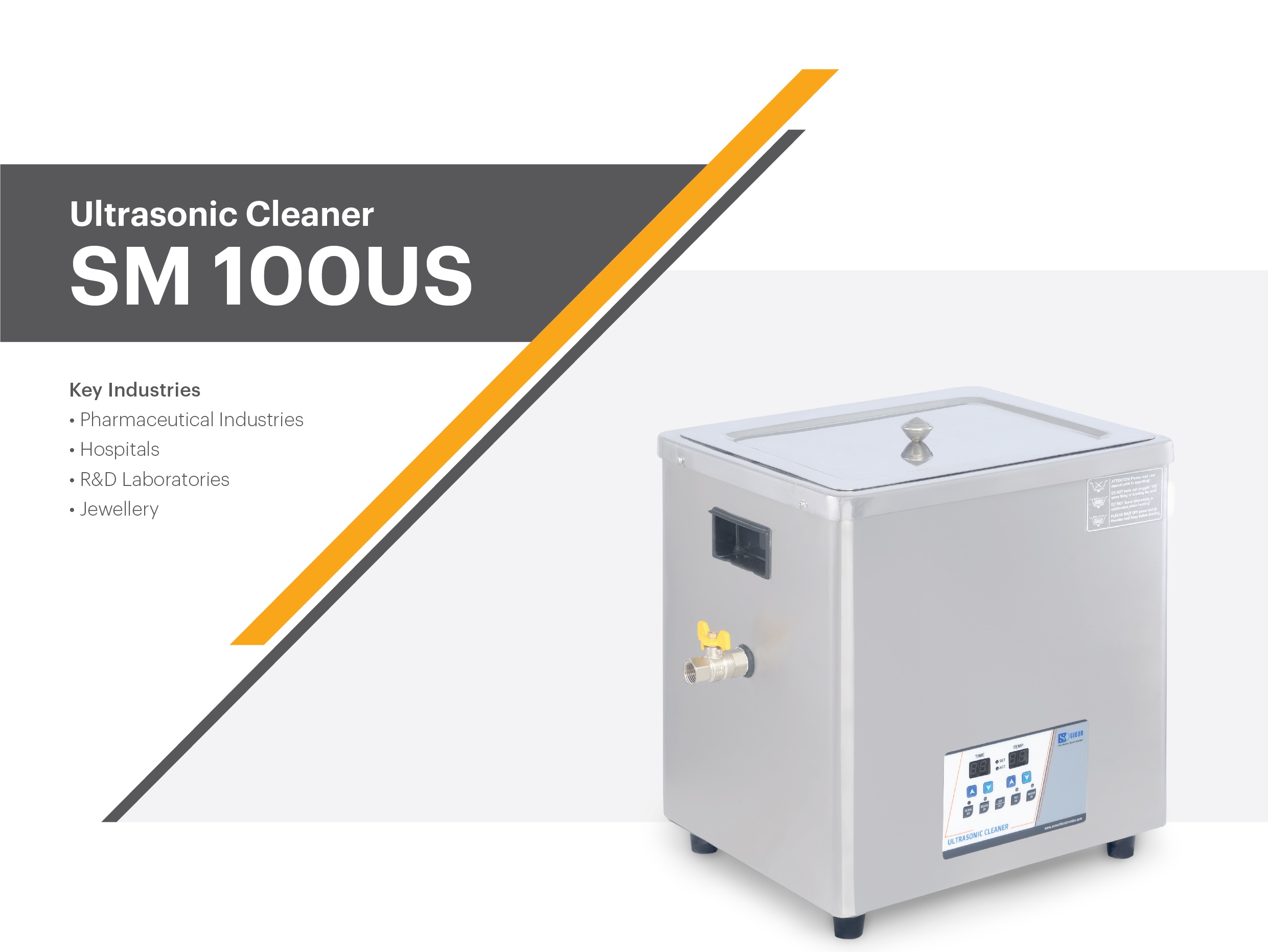

Ultrasonic cleaner, SM 100US
The SM 100US is a 10-liter capacity ultrasonic cleaner, featuring 250-watt ultrasonic power and robust 500-watt heating system with dual frequency operation at 33kHz/40kHz for versatile cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the tank. Designed for demanding applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features a compact cubic design with convenient drain valve and comprehensive digital control panel for efficient operation.
| model | SM 100US |
|---|---|
| tank_size | 12 inches × 6 inches × 6 inches (L × W × H) |
| outer_size | 15 inches × 12.4 inches × 15.4 inches (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 10 Liter's |
| ultrasonic_power | 250 Watts |
| heater_power | 500 Watts |
| ultrasonic_frequency | 33 Khz / 40 Khz ± 3 khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230 Vac |
| transducers | Imported Make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance latest mosfet / IGBT based smps |
| temperature | 60°c Settable with Digital Temp. Controller |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #11

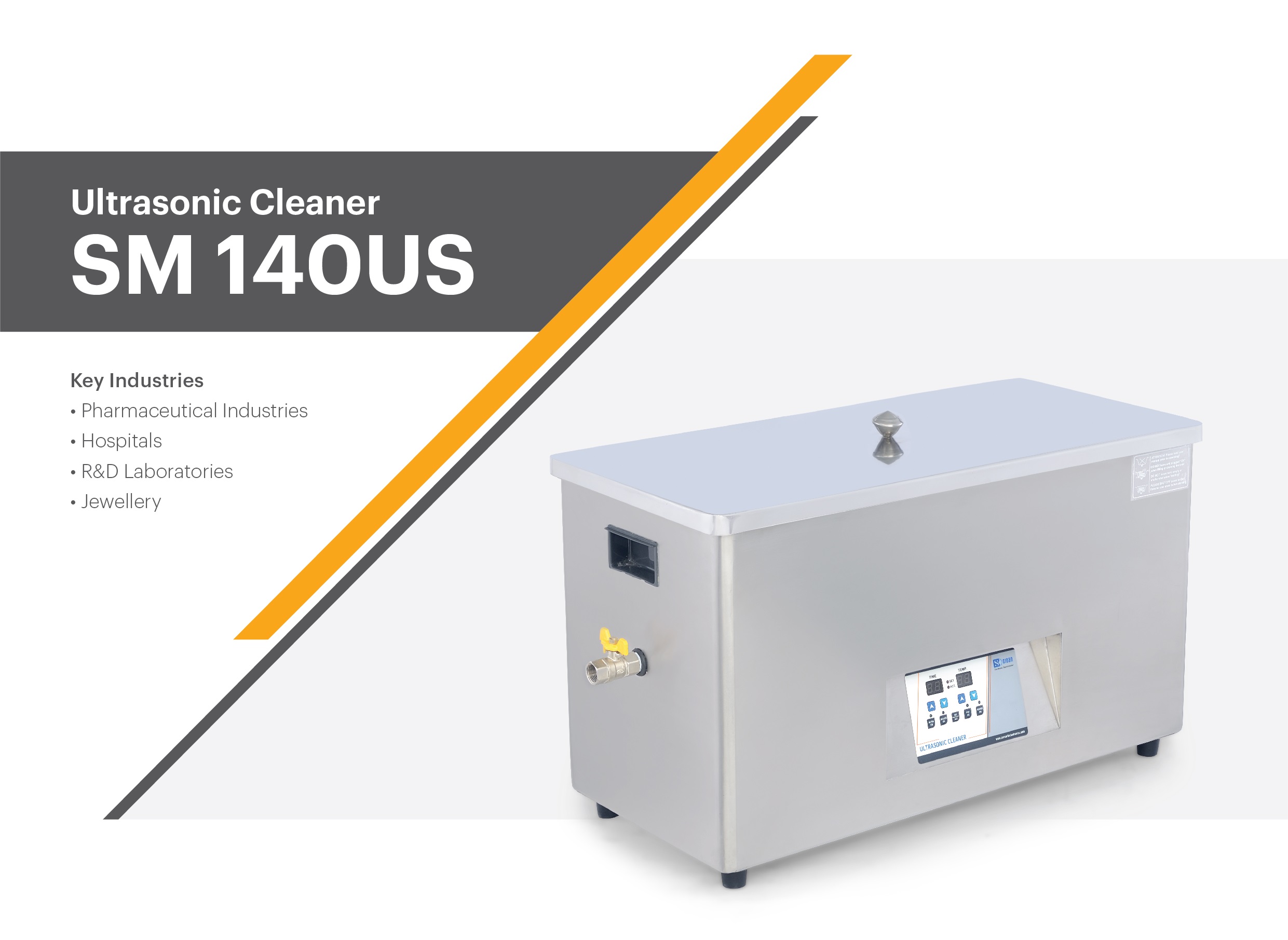

Ultrasonic cleaner, SM 140US
The SM 140US is a large-capacity 14-liter ultrasonic cleaner, featuring powerful 300-watt ultrasonic and 500-watt heating systems with dual frequency operation at 33kHz/40kHz for heavy-duty cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the spacious rectangular tank. Designed for demanding applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features robust stainless steel construction with convenient drain valve and comprehensive digital control panel for efficient high-volume operation.
| model | SM 140US |
|---|---|
| tank_size | 12 inches × 7 inches × 6 inches (L × W × H) |
| outer_size | 23 inches × 10 inches × 15.4 inches (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 14 Liter's |
| ultrasonic_power | 300 Watts |
| heater_power | 500 Watts |
| ultrasonic_frequency | 33 Khz / 40khz ± 3 Khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230 vac |
| transducers | Imported Make PZT type bonded at the bottom of the tank with weld bond Technique |
| ultrasonic_generator | Advance latest mosfet / IGBT Based Smps |
| temperature | 60°c Settable with Digital Temp. Controller |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform distribution ultrasonic power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #12

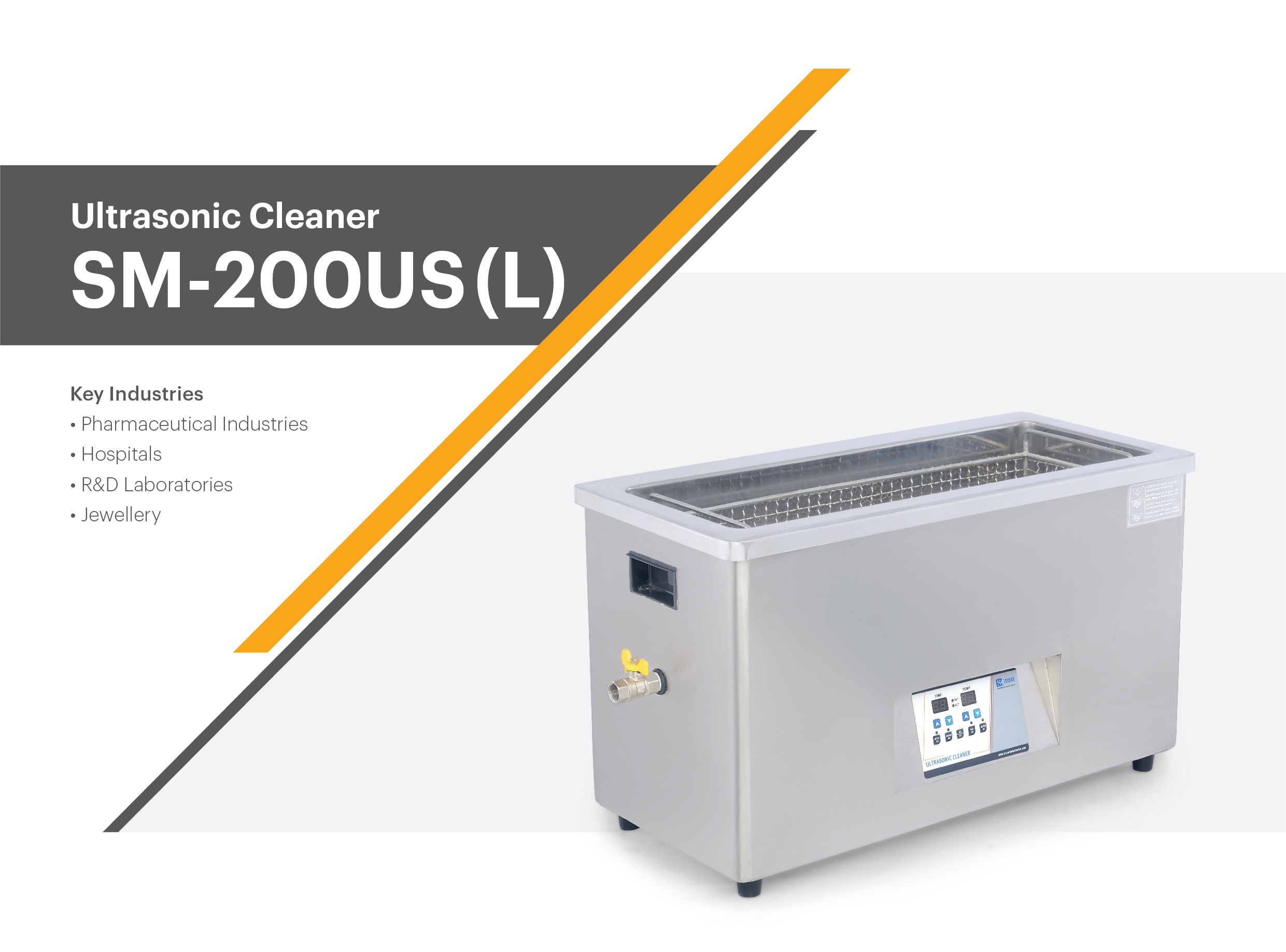

Ultrasonic cleaner, SM 200US(L)
The SM-200US(L) is a high-capacity 20-liter ultrasonic cleaner from Clean, featuring powerful 400-watt ultrasonic and 500-watt heating systems with dual frequency operation at 33kHz/40kHz for heavy-duty industrial cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the large rectangular tank. Designed for demanding high-volume applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features robust stainless steel construction with convenient drain valve and comprehensive digital control panel for efficient operation.
| model | SM-200US(L) |
|---|---|
| tank_size | 24 inches × 9 inches × 6 inches (L × W × H) |
| outer_size | 26 inches × 12 inches × 15.4 inches (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 20 Liter's |
| ultrasonic_power | 400 Watts |
| heater_power | 500 Watts |
| ultrasonic_frequency | 33 Khz / 40 Khz ± 3 khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230vac |
| transducers | Imported Make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance latest Mosfet / IGBT Based Smps |
| temperature | 60°c Settable With Digital Temp. Controller |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #13

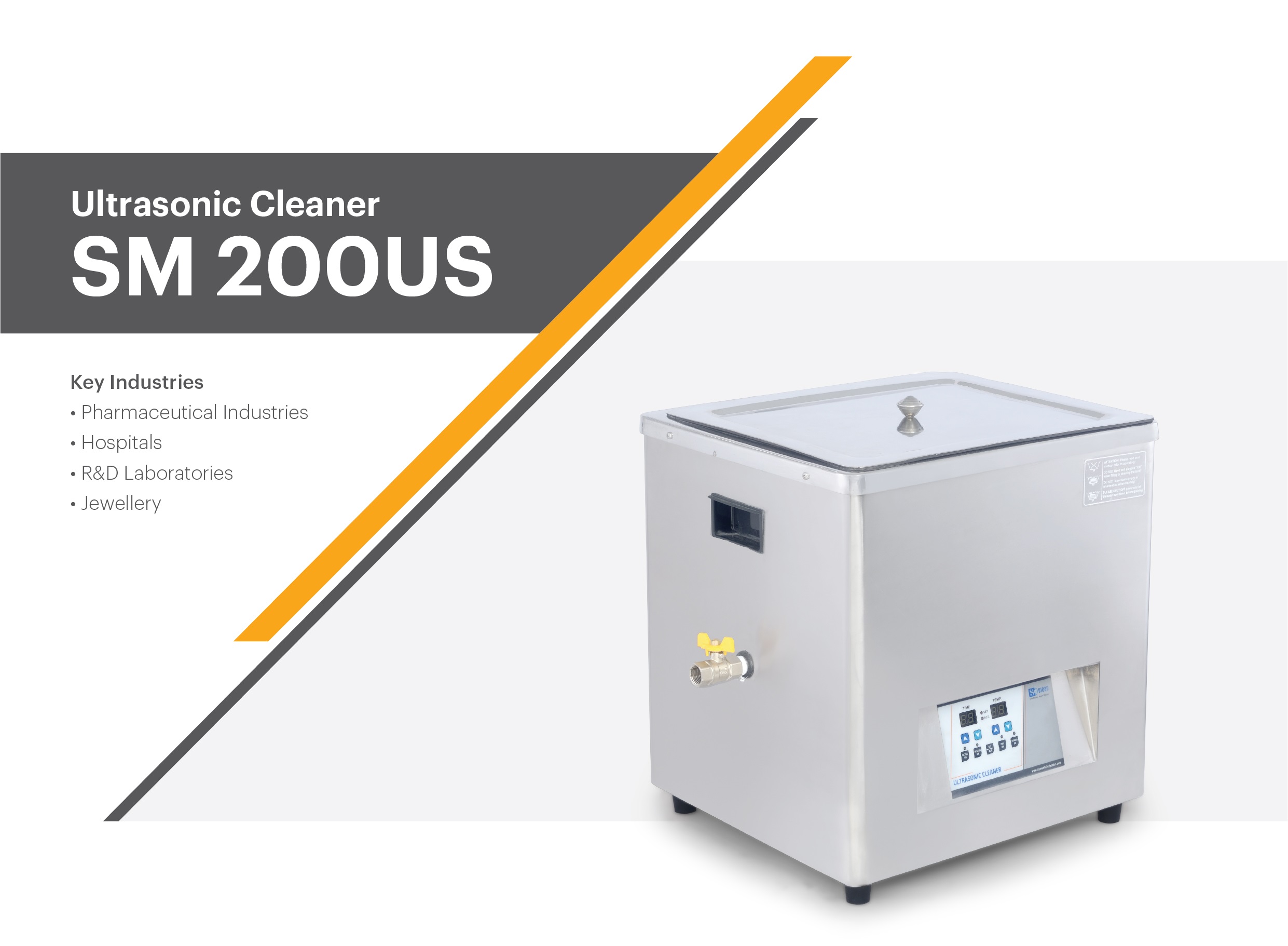

Ultrasonic cleaner, SM 200US
The SM 200US is a high-capacity 20-liter ultrasonic cleaner, featuring powerful 400-watt ultrasonic and 500-watt heating systems with dual frequency operation at 33kHz/40kHz for heavy-duty industrial cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the square-shaped tank. Designed for demanding high-volume applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features robust stainless steel construction with convenient drain valve and comprehensive digital control panel for efficient operation.
| model | SM 200US |
|---|---|
| tank_size | 14 inches × 12 inches × 8 inches (L × W × H) |
| outer_size | 17.4 inches × 16 inches × 16.8 inches (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 20 Liter's |
| ultrasonic_power | 400 Watts |
| heater_power | 500 Watts |
| ultrasonic_frequency | 33 Khz / 40khz ± 3 Khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230 vac |
| transducers | Imported Make PZT Type Bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance Latest Mosfet / IGBT Based Smps |
| temperature | 60°c Settable With Digital Temp. Controller |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #14

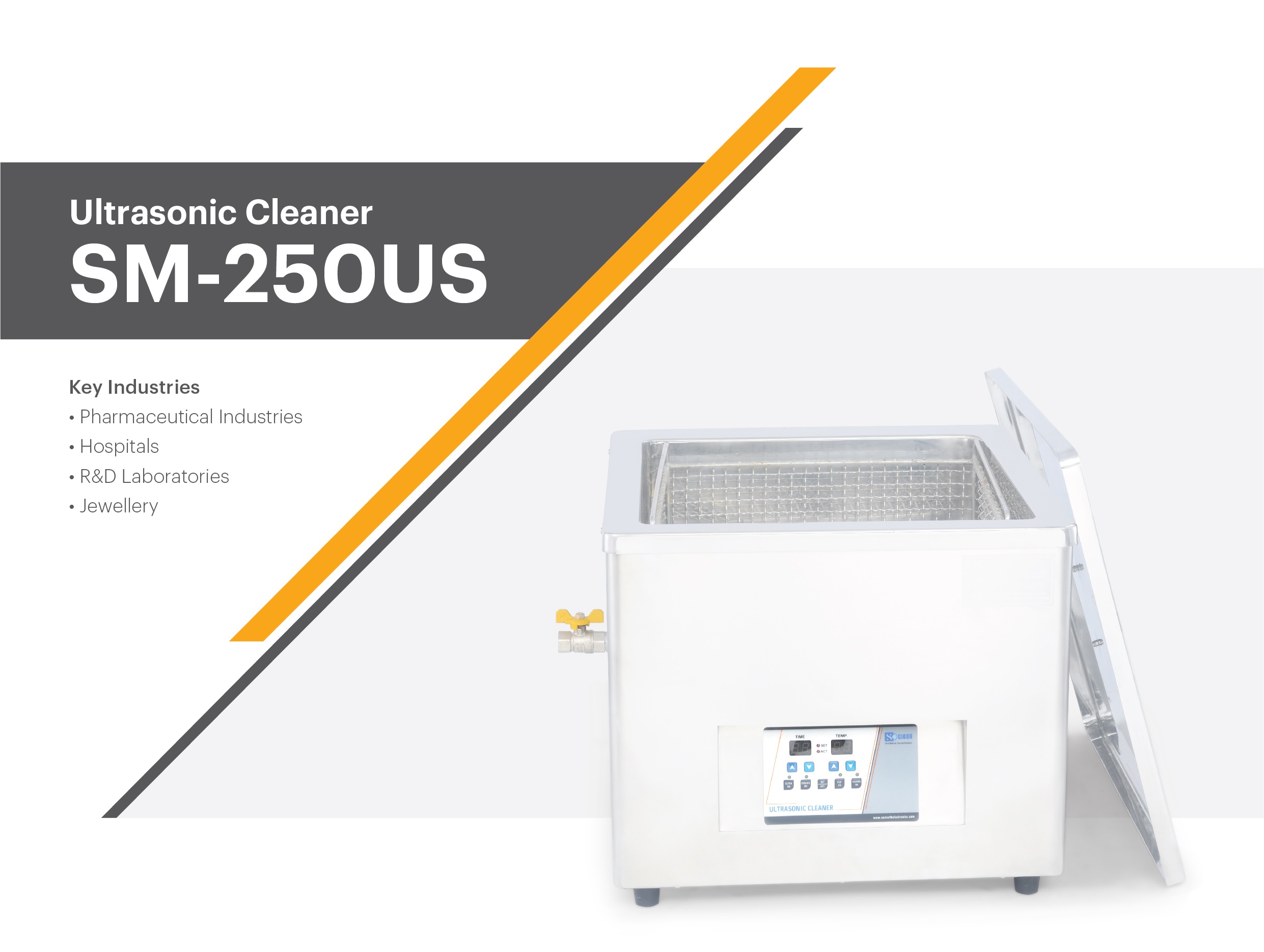

Ultrasonic cleaner, SM 250US
The SM-250US is a large-capacity 25-liter ultrasonic cleaner, featuring powerful 500-watt ultrasonic and 500-watt heating systems with dual frequency operation at 33kHz/40kHz for heavy-duty industrial cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the spacious square tank. Designed for demanding high-volume applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features robust stainless steel construction with hinged lid design, convenient drain valve, and comprehensive digital control panel for efficient operation.
| model | SM-250US |
|---|---|
| tank_size | 16 inches × 16 inches × 6 inches (L × W × H) |
| outer_size | 15 inches × 19 inches × 15.8 inches (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 25 Liter's |
| ultrasonic_power | 500 Watts |
| heater_power | 500 Watts |
| ultrasonic_frequency | 3 3khz / 40khz ± 3 khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230vac |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance Latest Mosfet / IGBT based Smps |
| temperature | 60°c Settable With Digital Temp. Controller |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #15
Ultrasonic cleaner, SM 300US
The SM-300US is a high-capacity 30-liter ultrasonic cleaner, featuring extremely powerful 600-watt ultrasonic and 1000-watt heating systems with dual frequency operation at 33kHz/40kHz for the most demanding industrial cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the large cubic tank. Designed for intensive high-volume applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features robust stainless steel construction with convenient drain valve and comprehensive digital control panel for maximum efficiency and performance.
| model | SM-300US |
|---|---|
| tank_size | 15 inches × 15 inches × 8 inches (L × W × H) |
| outer_size | 19.2 inches × 19.8 inches × 19 inches (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 30 Liter's |
| ultrasonic_power | 600 Watts |
| heater_power | 1000 Watts |
| ultrasonic_frequency | 33khz /40 Khz ± 3khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230 Vac |
| transducers | Imported Make PZT Type Bonded at The Bottom of the Tank with Weld Bond Technique |
| ultrasonic_generator | Advance Latest Mosfet / IGBT Based SMPS |
| temperature | 60°c Settable with Digital Temp. Controller |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
Model #16

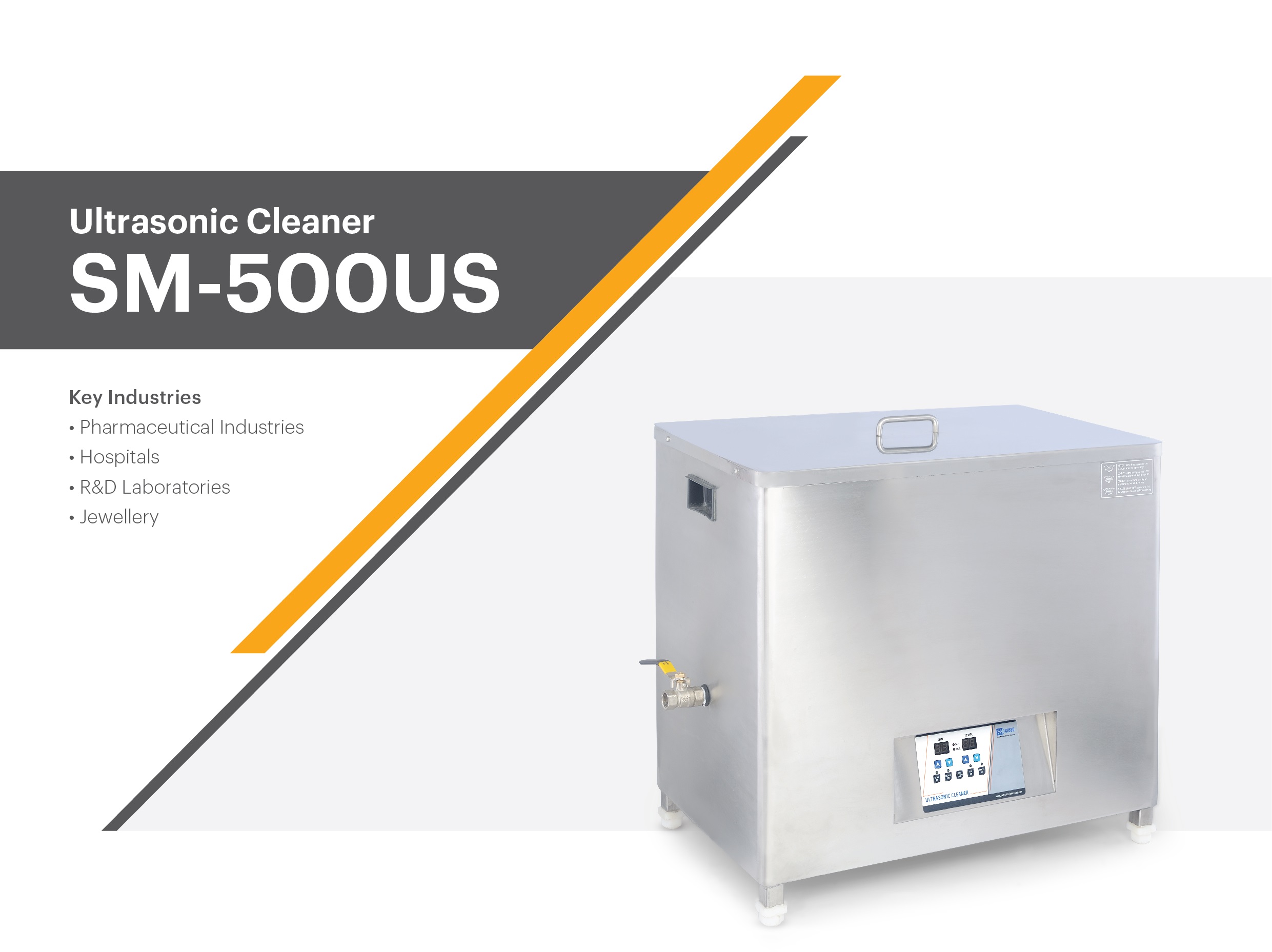

Ultrasonic cleaner, SM 500US
The SM-500US is a very large-capacity 50-liter ultrasonic cleaner, featuring extremely powerful 750-watt ultrasonic and 1000-watt heating systems with dual frequency operation at 33kHz/40kHz for the most demanding heavy-duty industrial cleaning applications. This professional-grade unit includes advanced digital controls with 99-minute timer capability, precise temperature control up to 60°C, and Pulse Swift Power (PSP) technology for uniform ultrasonic distribution throughout the extra-large rectangular tank. Designed for intensive high-volume applications in pharmaceutical industries, hospitals, R&D laboratories, and jewelry cleaning, it features robust stainless steel construction with convenient drain valve and comprehensive digital control panel for maximum efficiency in large-scale cleaning operations.
| model | SM-500US |
|---|---|
| tank_size | 22 inches × 12 inches × 12 inches (L × W × H) |
| outer_size | 24 inches × 15 inches × 21.4 inches (L × W × H) |
| tank_material | SS 304 |
| enclosure_material | SS 304 |
| tank_capacity | 50 Liter's |
| ultrasonic_power | 750 Watts |
| heater_power | 1000 Watts |
| ultrasonic_frequency | 33khz / 40 Khz ± 3khz |
| timer | 0 to 99 Minutes (Digital Countdown Base) |
| power_input | 230Vac |
| transducers | Imported make PZT type bonded at the bottom of the tank with weld bond technique |
| ultrasonic_generator | Advance latest mosfet / IGBT based SMPS |
| temperature | 60°c Settable with digital temp. controller |
| degass | On / Off Mode |
| pulse_swift_power | For Uniform Distribution Ultrasonic Power |
| accessories | ['Lid', 'Basket', 'Drain Valve', 'User Friendly Operation Manual'] |
